Marine GPS Chart Plotter with AIS Transponder & GNSS Antenna | Dual Map System | IPX6 Waterproof Satellite Navigator for Boats | Perfect for Offshore Fishing, Yachting & Marine Navigation

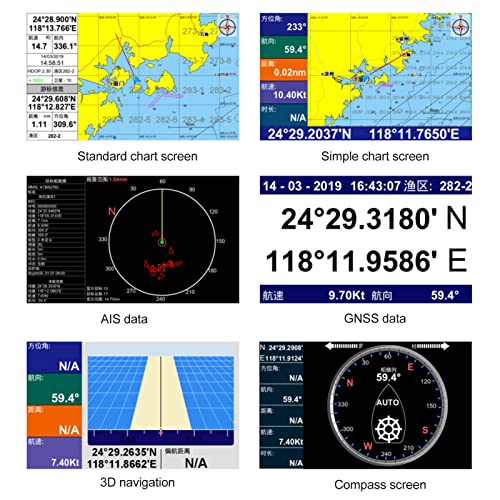

Specification: Item Type: GPS Chart plotter Material: ABS+silicone Screen Type: Color TFT LCD Display Screen Size: 7 inches Resolution: 800 x 480 Screen Brightness: 500cd/㎡ Languages: English, Simplified Chinese, Traditional Chinese, Vietnamese, Malay, Korean, Turkish, Thai, Greek, Indonesian, Japanese, Burmese, Arabic, Spanish, French, Persian Picture Mode: Standard chart, simple chart, full screen chart, AIS data, navigation data, satellite ephemeris, 3D navigation, compass Storage Capacity: 50,000 waypoints, 50,000 mark points, 500 routes, 200 points per route, 1,000 tracks, 1.6 million track points Interface: 2 way NMEA0183 output, 2 way NMEA0183 input (independent of each other, baud rate can be set independently) WIFI: 802.11 b/g/n Power Consumption: Less than 8W (voltage 24V) Working Temperature: -15℃-+55℃ Storage Temperature: -20℃-+60℃ Waterproof Grade: IPX6 GNSS Receive Channel: 72 channels Receiving Frequency Band: GPS L1: 1575.42MHz; BDS B1: 1561.098MHz Positioning Accuracy: GPS and BDS 2.5m (CEP50%, open field) GPS: 5m (CEP50%, open area) BDS: 5m (CEP50%, open area) Speed measurement Accuracy: 0.1m/s (50%at10m/s) First Positioning Time: Less than 30 seconds (cold start), less than 1 second (warm start) Compliant With Standards: IMO A.694(17) , IMO MSC 112(73), IEC 61108-1, IEC 61162-1, IEC 60945 Package List: 1 x GPS Chart Plotter 1 x GNSS Antenna 1 x 8 Core Data Cable 1 x 2 Core Power Cord 1 x Mounting Base Bracket 2 x Fixed Knob 4 x Base Fixing Screws 4 x Small Screw 1 x User Manual

Precise positioning GNSS chartplotter supports Beidou and GPS dual-mode positioning, combined with self-developed SOG and COG filtering algorithms, high receiving sensitivity and accurate positioning.

Large-capacity storage Using high-speed and stable flash memory chips, it supports storage of 50,000 waypoints, 50,000 mark points, 500 routes, 1,000 tracks, and 1.6 million track points.

Custom Settings Support to display your own ship anywhere on the screen to expand the navigation area. Custom data names, symbol styles and colors are also supported.

Waterproof shell design plastic shell design, waterproof, dustproof, anti-interference, fast heat dissipation, durable. The waterproof and dustproof grade is IPX6.

Dual chart system Support C MAP MAX and XINUO MAP dual chart system, users can switch independently. Built-in global charts, providing regular updates of XIUO charts.
